General Description
DelinComm EU1010 is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Applications
1、LBS (Location Based Service)
2、PND (Portable Navigation Device)
3、Vehicle navigation system
4、Mobile phone

Features
1、Build on high performance, low-power ublox UBX-G7020-KT chip set
2、Ultra high Track sensitivity: -165dBm
3、Extremely fast TTFF at low signal level
4、Low power consumption: Max 25mA@3.3V
5、NMEA-0183 compliant protocol or custom protocol
6、Operating voltage: 2.8V to 3.6V
7、Operating temperature range:-40to85℃

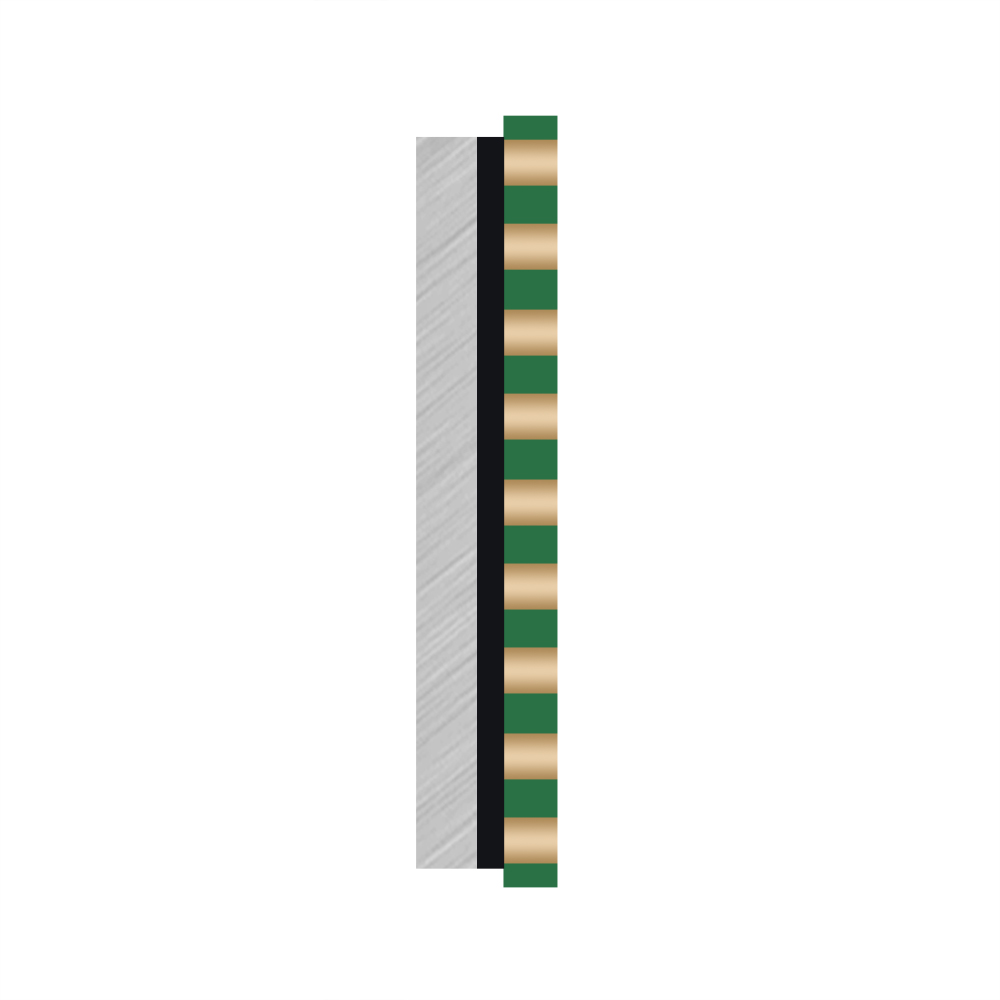

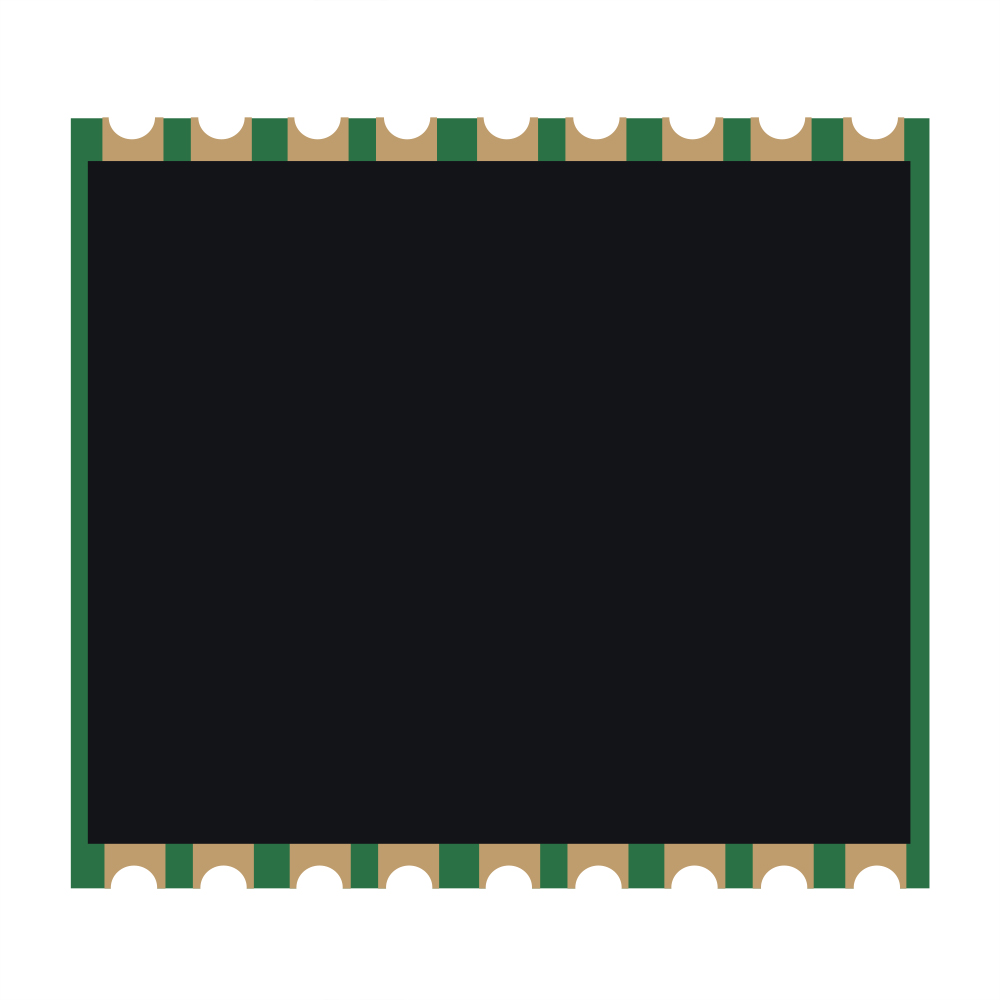

8、SMD type with stamp holes
9、Small form factor: 10.1x9.7x2.2mm
10、RoHS compliant (Lead-free)
