General Description

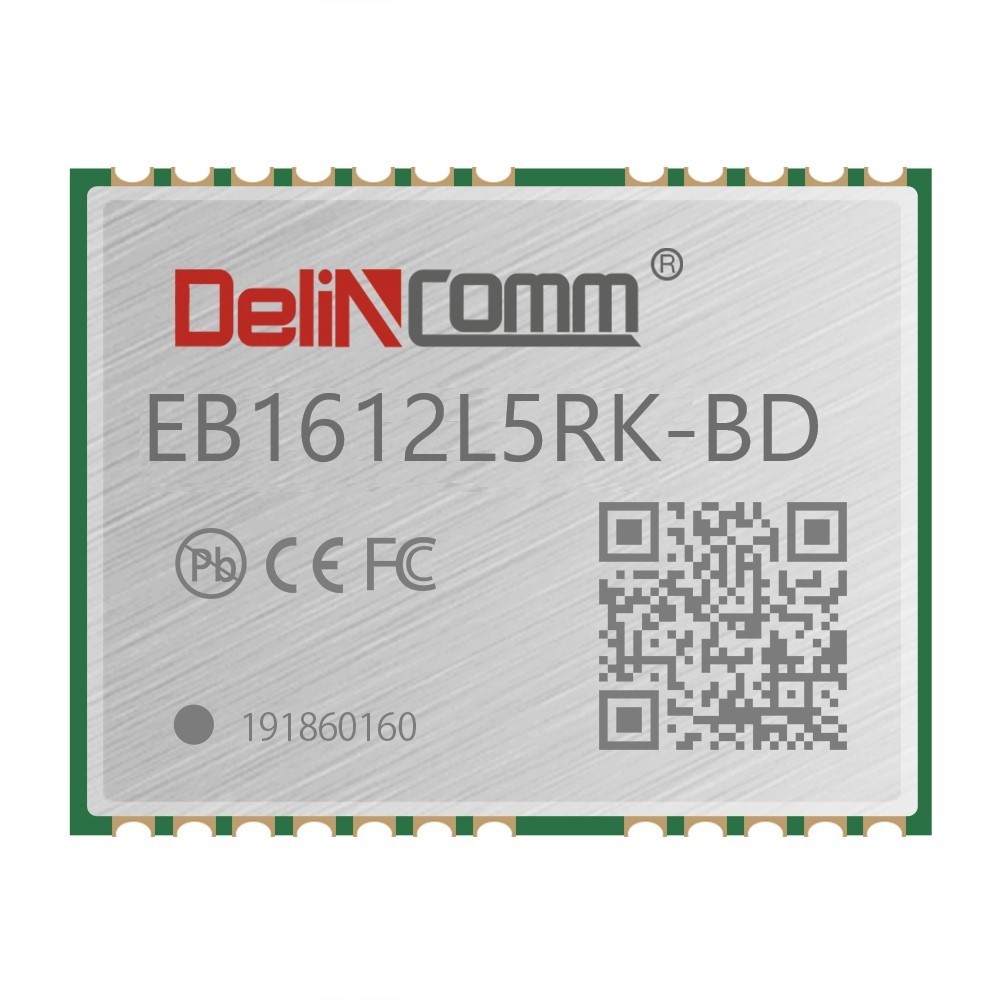

The EB1612L5RK-BD is a receiving module that supports Dual-band& BEIDOU-mode. It has built-in highly integrated GNSS receiver chip, supports multi band and multi system cm4f (main frequency 350mhz, 22nm Technology) chip of Third-generation BeiDou Navigation Satellite System (BDS-3). Besides, it is capable of tracking the civil navigation systems BDS in band L1and L5.
EB1612L5RK-BD module is based on the state of art BDS-3 architecture, integrating multi-band and multi-system GNSS RF and base band. This newly designed architecture makes this single chip achieve sub-meter level position accuracy without correction data from ground-based augmentation station and higher sensitivity, greater for improved jam resistance and multipath, provide a highly robust service in complicated environment.
EB1612L5RK-BD module contains BK166X positioning engine inside, featuring high sensitivity, low power consumption, and fast TTFF. The superior cold start sensitivity allows it to acquire, track, and get position fix autonomously in difficult weak signal environment. The receiver’s superior tracking sensitivity allows continuous position coverage in nearly all outdoor application environments. The high performance signal parameter search engine is capable of testing 16 million time-frequency hypotheses per second, offering superior signal acquisition and TTFF speed.
Applications
1、LBS (Location Based Service)
2、PND (Portable Navigation Device)
3、Vehicle navigation system
4、Mobile phone
Features
1、Build on high performance, low-power BK166X chip set
2、Concurrent reception of dual-band and BEIDOU- system sate llite signals
3、Supports RTK ; Protocol: RTCM 3.3
4、BDS: Horizontal 1.5m CEP; Vertical 2.5m CEP
5、RTK: Horizontal 1cm+1ppm CEP; Vertical 1.5cm+1ppm CEP
6、Software version :（last version）
7、Supports all civil GNSS signals
8、Supports BDS-3 signal
9、Extremely fast TTFF at low signal level
10、Multipath detection and suppression
11、Works with passive and active antenna
12、Low power consumption: Max 25mA@3.3V
13、NMEA-0183 compliant protocol or custom protocol
14、Operating voltage:2.8V to 3.6V
15、SMD type with stamp holes
16、Small form factor: 16x12x2.6mm
17、Operating temperature -40 ~ +85ºC
18、RoHS compliant (Lead-free)
