General Description

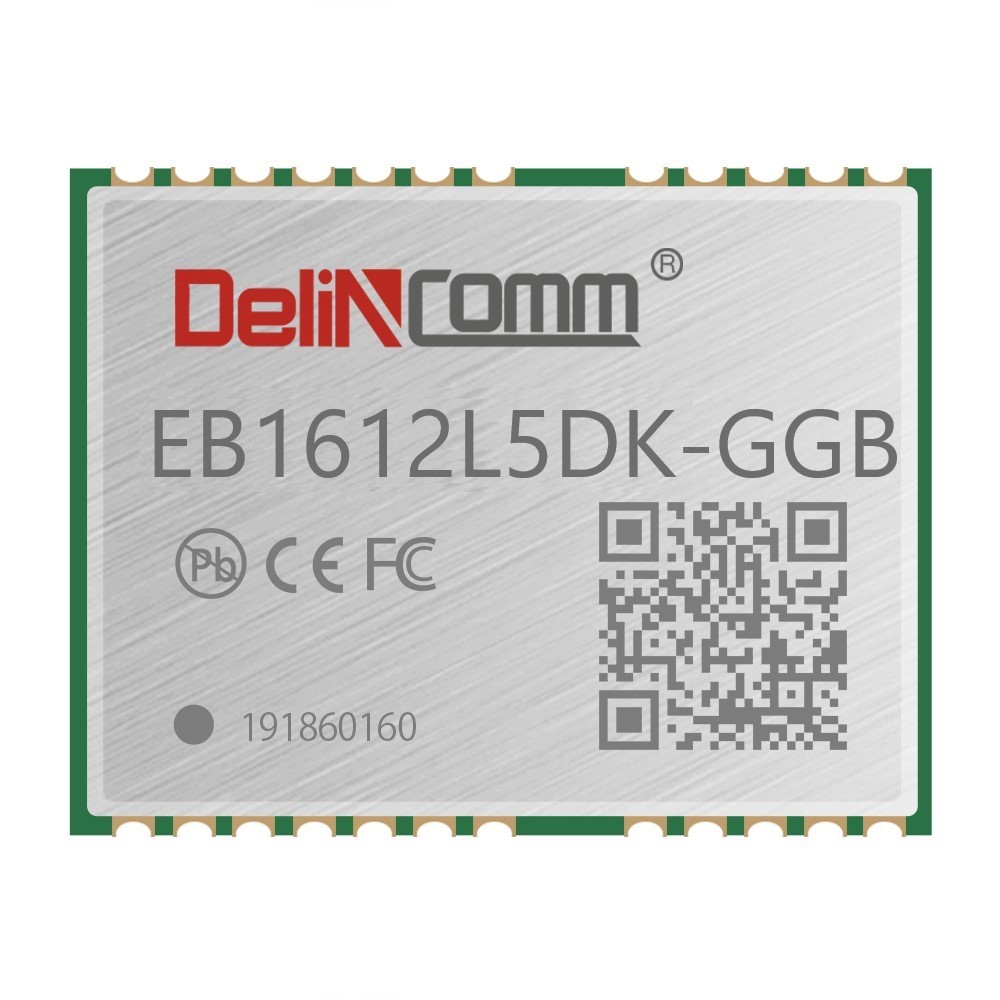

DelinComm EB1612L5DK-GGB is a receiver module that supports dual-band&multi-mode. It is made of the BK166X series GNSS chip, and six axis acceleration sensor.It is a multiple function communication module which has integrated the advanced online adaptive integrated navigation algorithm and GNSS location engine, it can provide real-time, high-precision vehicle location, speed measurement and direction measurement information in any environment (such as indoor, tunnel, underground garage, etc.). When the signal accuracy is reduced and even satellite signals are lost in GNSS system, without using the odometer information, EB1612L5DK-GGB can use only inertial navigation technology to locate, measure the vehicle carrier accurately for a long time.
EB1612L5DK-GGB is a concurrent receiver module with built-in multiple positioning systems that support simultaneous reception of BDS,GPS,Glonass, Galileo,QZSS,IRNSS and SBAS L1&L5 bands. It has 200 tracking channels, enable it to capture and track any multiple satellite signals.Compared with single GPS system, the multiple positioning system (BDS,GPS,Glonass, Galileo,QZSS,IRNSS and SBAS) ofEB1612L5DK-GGB makes a great increase in the number of visible and available satellites, at the same time, the first positioning time is greatly reduced, even in complex urban environment, it can achieve higher positioning precision and accuracy
Applications
1、Vehicle High Precision Navigation
2、ITS (Intelligent Traffic System)
3、Vehicle Remote Monitoring
Features
1、Build on high performance, low-power GNSS BK166X chip set
2、Built-in ST-LSM6DSRTR acceleration sensor to define various gravity algorithms
3、Supports BDS-3 signals
4、Supports inertial navigation mode（DR
5、Supports RTK;Protocol:RTCM 3.3
6、Simultaneously receiving dual-band&multi-system satellite signals and all civil GNSS signals. Multipath signal detection and interference suppression. Support assive or active antenna
7、Built-in high gain LNA to improve receiving sensitivity
8、Support satellite systems: BDS, GPS,Glonass,Galileo, QZSS,IRNSS and SBAS
9、Ultra high track sensitivity: -165dBm
10、Baud rate:115200, 1-10Hz Protocol compliant NMEA-0183 Supports automatic inertial navigation and positioning without GNSS signal
11、Automatically save GNSS log information
12、Operating voltage: 2.8V~3.6V
13、Power consumption: 30 mA@3.3V

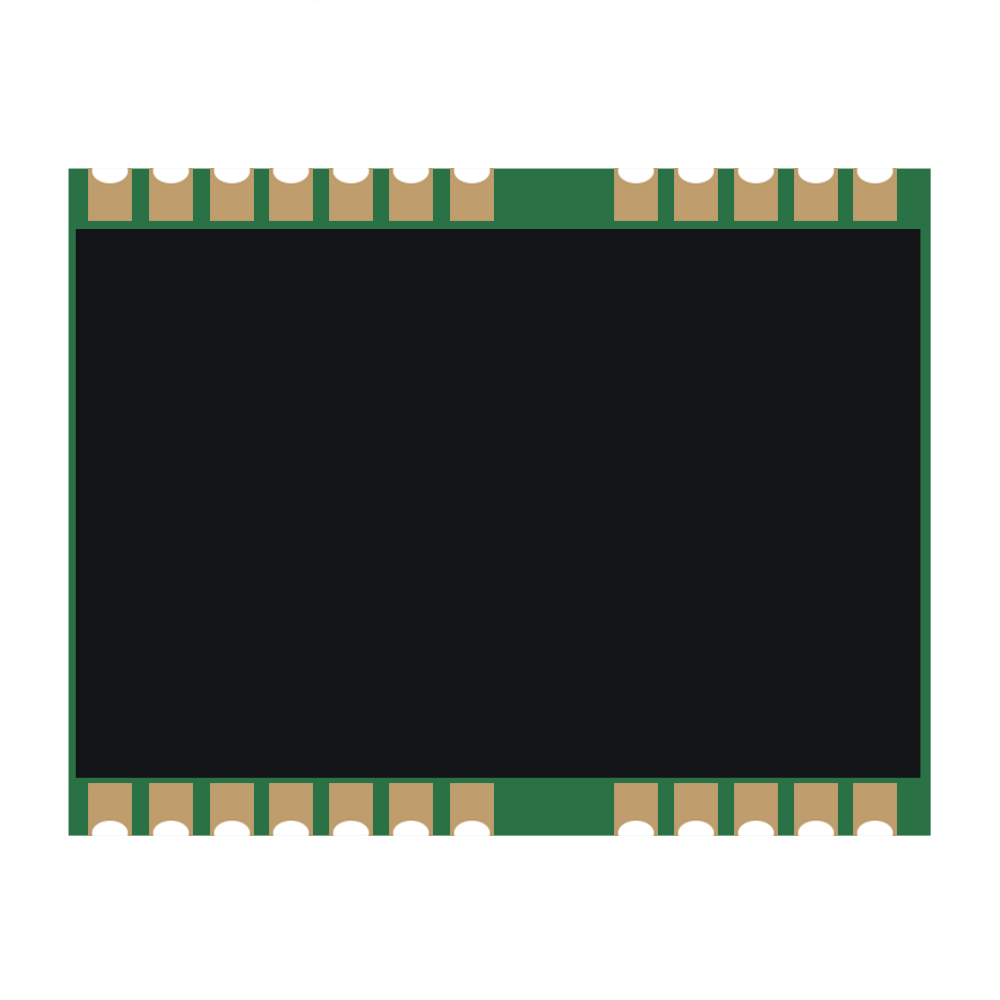

14、SMD type with stamp holes

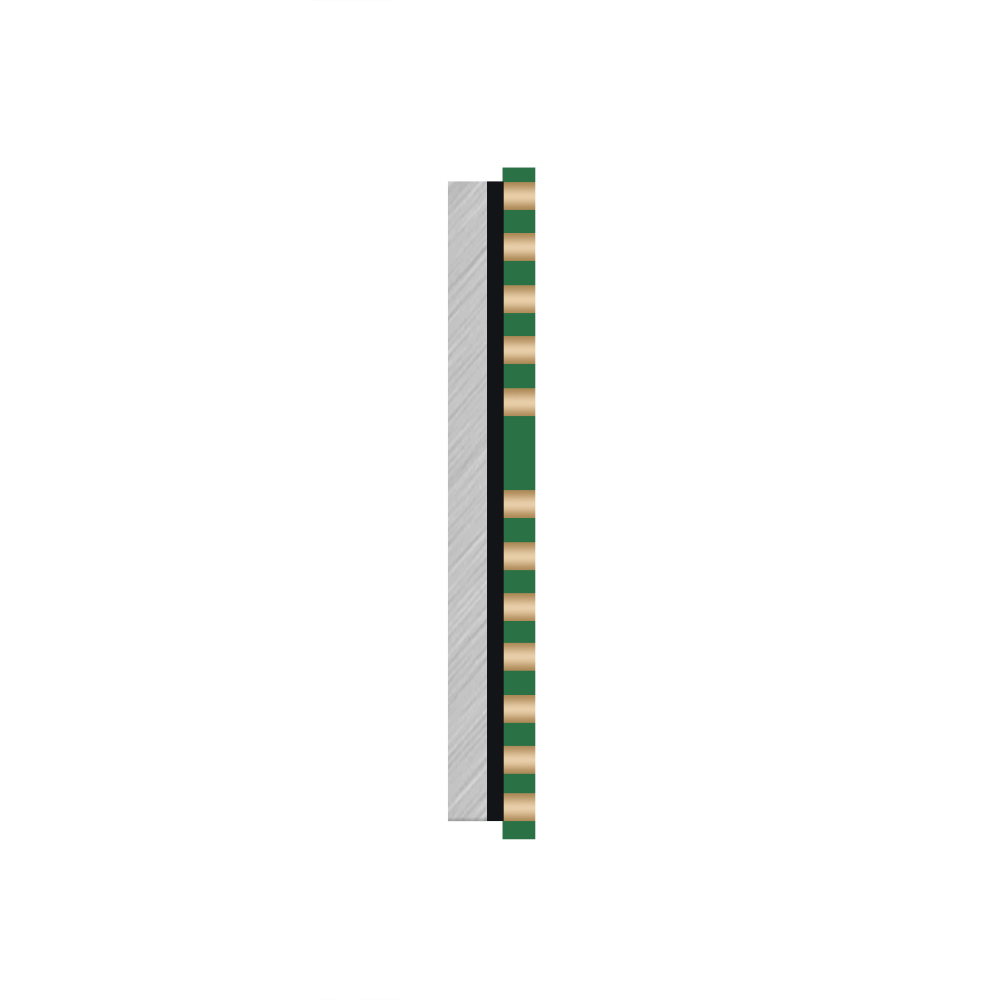

15、Small form factor: 16±0.6x12.2±0.2x2.4±0.2mm
16、Product weight：0.9 g
17、Recommended operating temperature range:-40to85℃
18、RoHS compliant (Lead-free)
