General Description

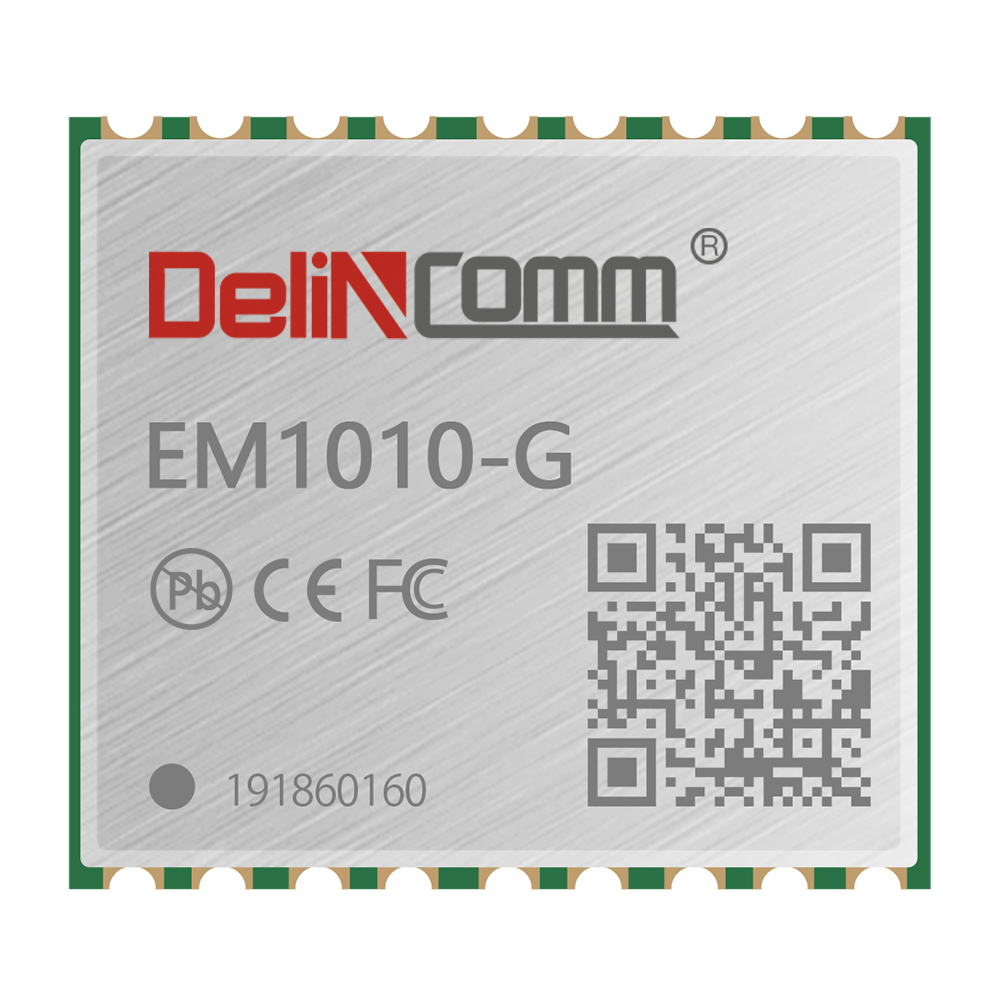

DelinComm EM1010-G is a receiving module that supports single-band and multi-mode. It has built-in highly integrated GNSS receiver chip, supports multi band and multi system cm4f (main frequency 428MHz, 22nm Technology) chip of Third-generation BeiDou Navigation Satellite System (BDS-3). Besides, it is capable of tracking allglobal civil navigation systems (BDS, GPS, GLONASS, Galileo, QZSS and SBAS) in all bands. EM1010-G module is based on the state of art CYNOSURE III architecture, integrating single-band and multi-system GNSS RF and baseband. This newly designed architecture makes this single chip achieve sub-meter level position accuracy without correction data from ground-based augmentation station and higher sensitivity, greater for improved jam resistance and multipath, provide a highly robust service in complicated environment.
EM1010-G module contains AG3352Q positioning engine inside, featuring high sensitivity, low power consumption, and fast TTFF. The superior cold start sensitivity allows it to acquire, track, and get position fix autonomously in difficult weak signal environment. The receiver’s superior tracking sensitivity allows continuous position coverage in nearly all outdoor application environments. The high performance signal parameter search engine is capable of testing 16 million time-frequency hypotheses per second, offering superior signal acquisition and TTFF speed.
Applications
1、LBS (Location Based Service)
2、PND (Portable Navigation Device)
3、Vehicle navigation system
4、Mobile phone
Features
1、Build on high performance, low-power MediaTek AG3352Q chip set
2、Ultra high track sensitivity: -165dBm
3、Concurrent reception ofsingle-band and multi-system satellite signals
4、Supports all civil GNSS signals
5、Supports BDS-3 signal
6、Extremely fast TTFF at low signal level
7、Multipath detection and suppression
8、Works with passive and active antenna
9、Low power consumption: 10mA@3.3V
10、NMEA-0183 compliant protocol or custom protocol
11、Operating voltage:2.8V to 3.6V

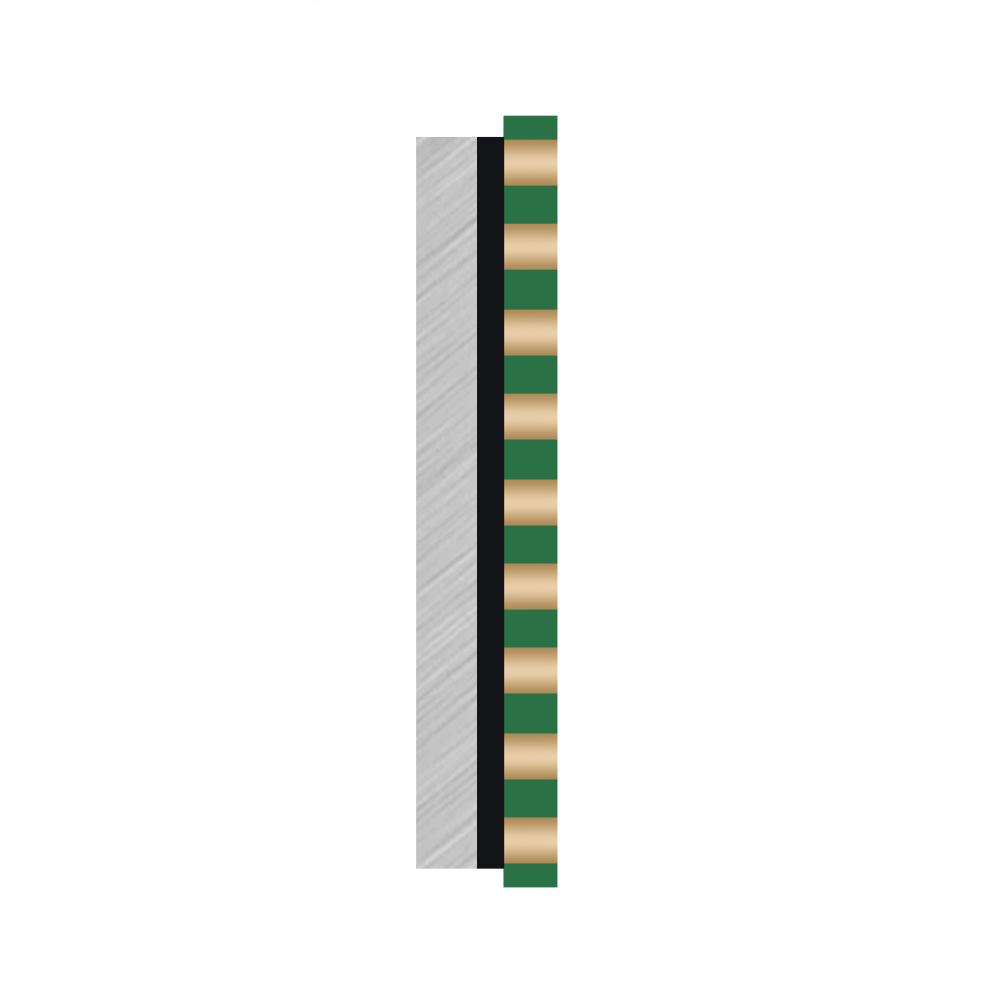

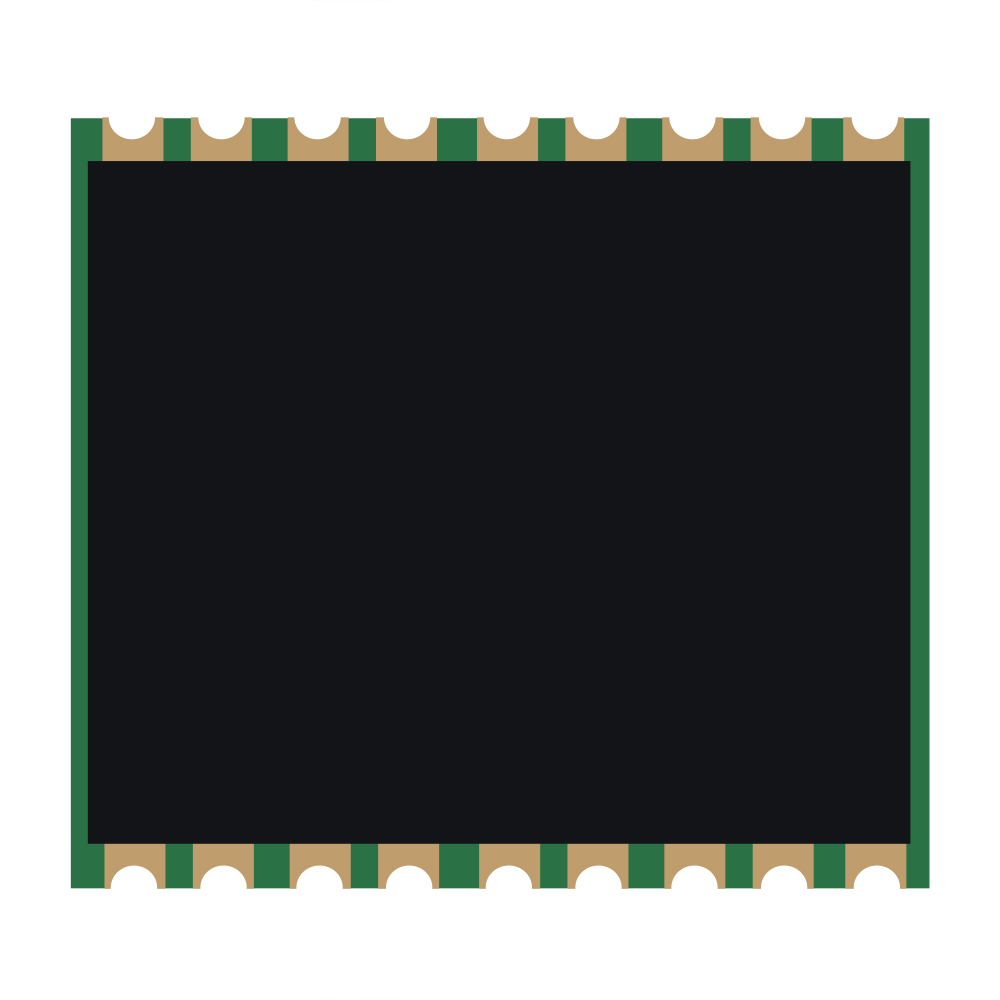

12、SMD type with stamp holes
13、Small form factor: 10.1x9.7x2.2mm
14、Operating temperature -40 ~ +85ºC
15、RoHS compliant (Lead-free)
