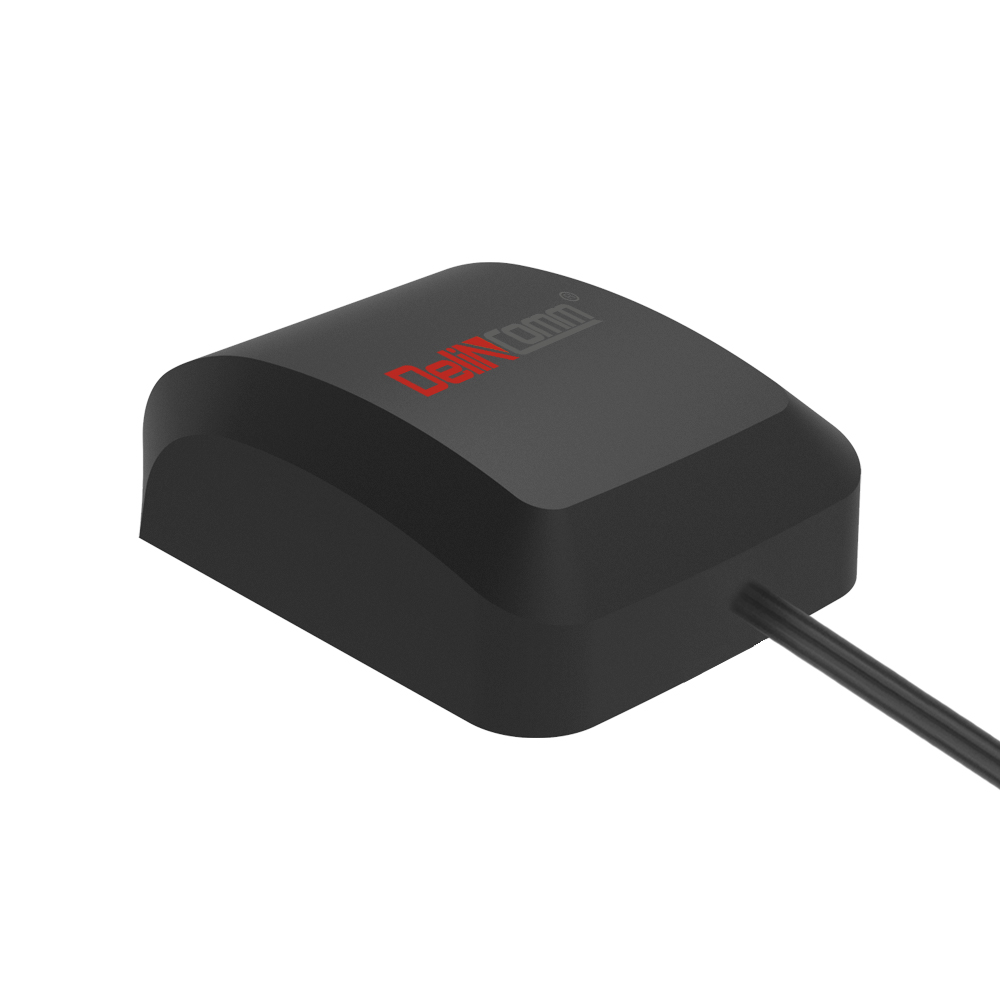

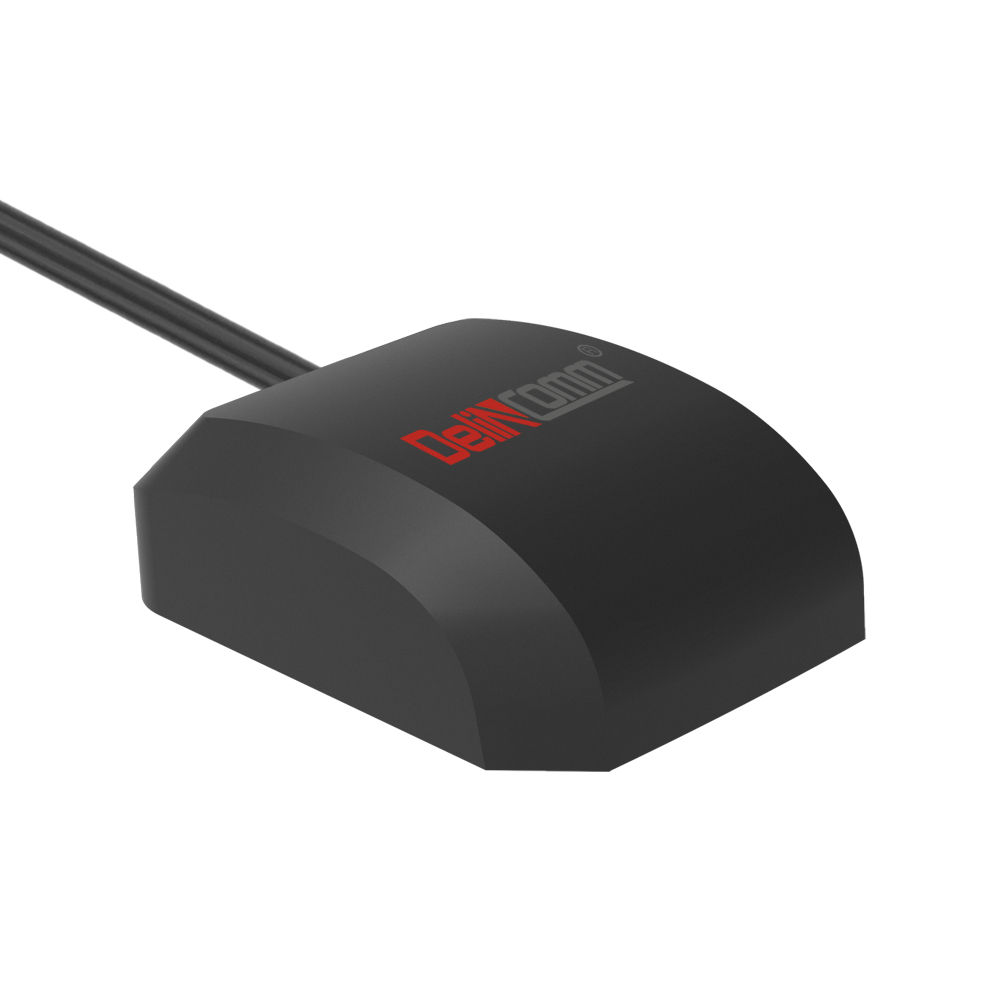

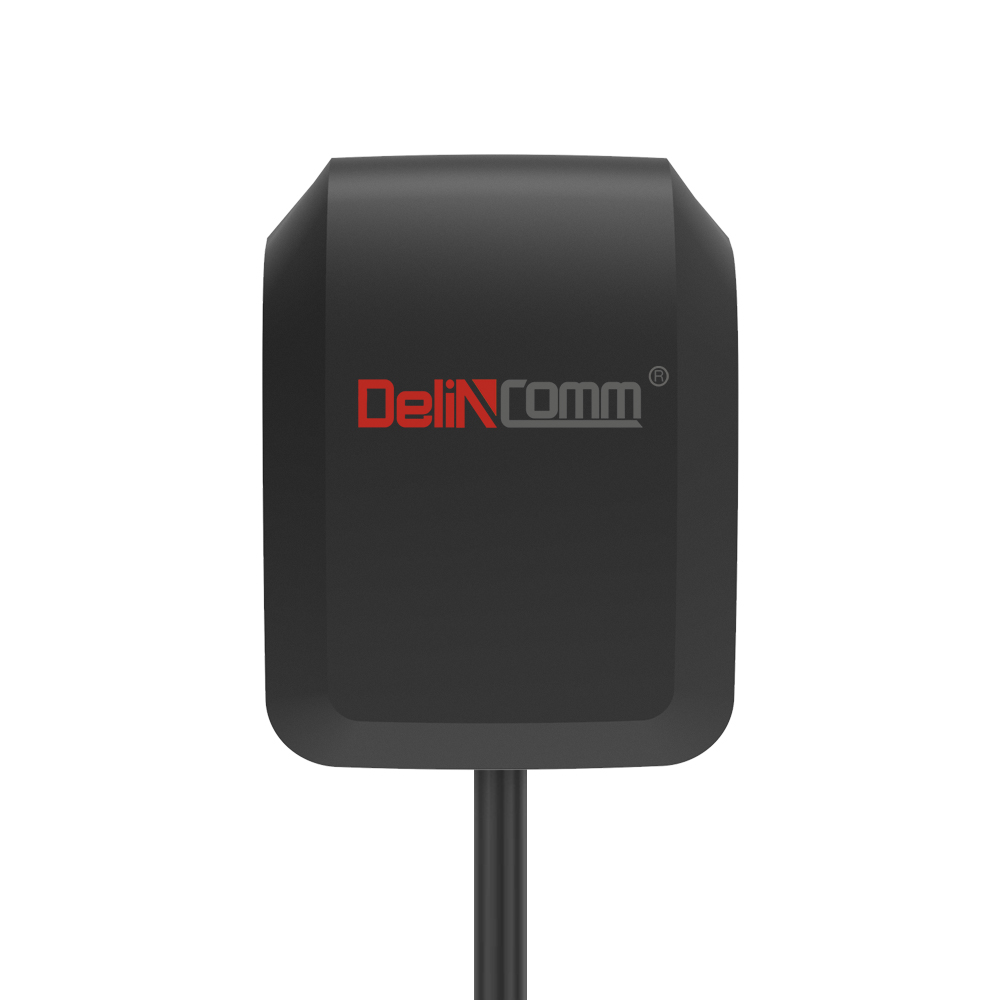

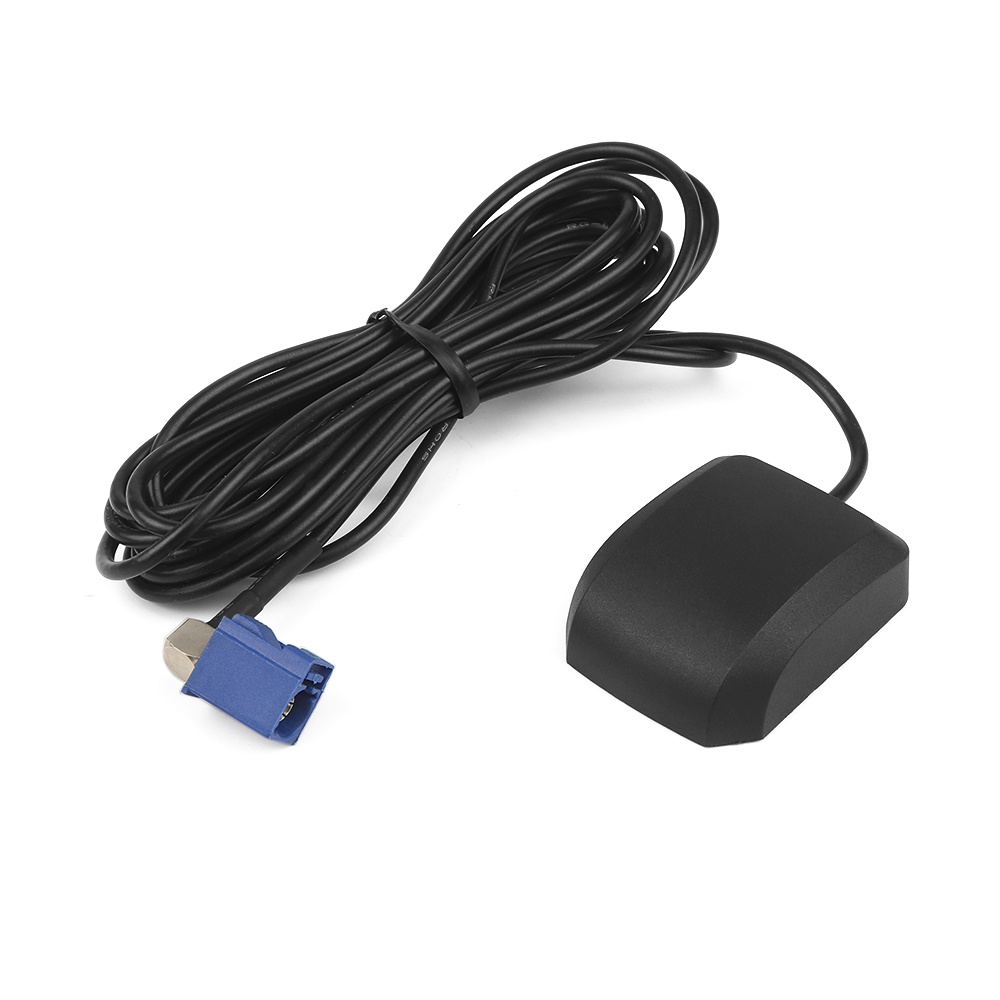

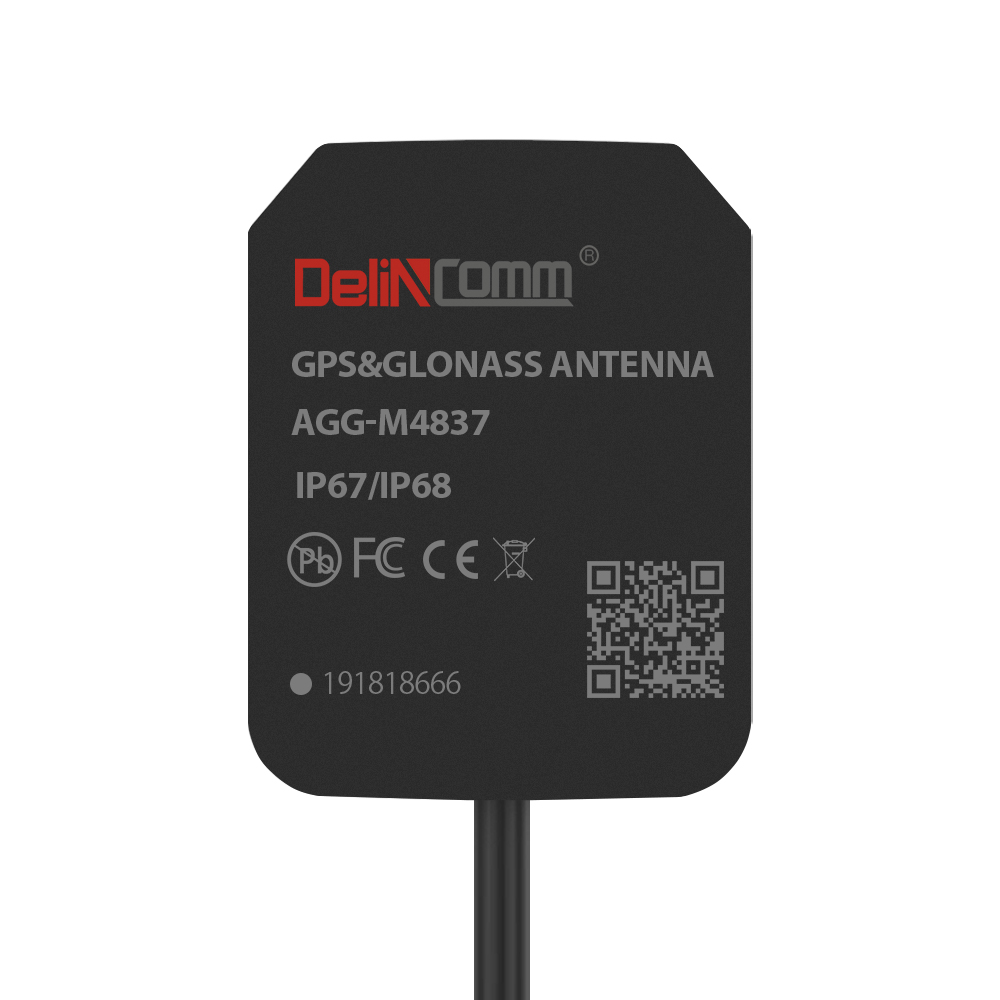

GPS&Glonass External Antenna AGG-M4837


Advisory

Product description

Downloads

AGG-M4837 GPS&Glonass Antenna Characteristic


Item

Specifications

Antenna

Center Frequency

1575.42/1600±3 MHz

Gain

3dBi

V.S.W.R.

≤2.0

Ploriaztion

RHCP

Impedance

50Ω

Axial Ratio(with 70mm Square GND plan)

3.0dB±0.2

Frequency Temperature Coefficient (ppm/℃)

0±10

LNA

Gain

26±3dB

V.S.W.R.

≤2.0

Noise Figure

<2.0

Supply Voltage

3～5V

Current Consumption

≤20mA

Mechanical

Dimension

48×37×17 mm

Cable

RG174 / 3m

Mounting Method

Screw

Connector

FAKRA

Weight

80g

Operating Temp.

-40℃～+85℃

Operating Humidity

0%～95%
